Concentricity Control


Our Concentricity Control enable precise measurement of synchronizer rings. Over 60 measuring points are recorded to accurately determine diameter, ovality and concentricity. The results are displayed graphically, including tolerance ranges, and can be easily zoomed and scrolled. This is how we ensure the highest quality when testing your components.

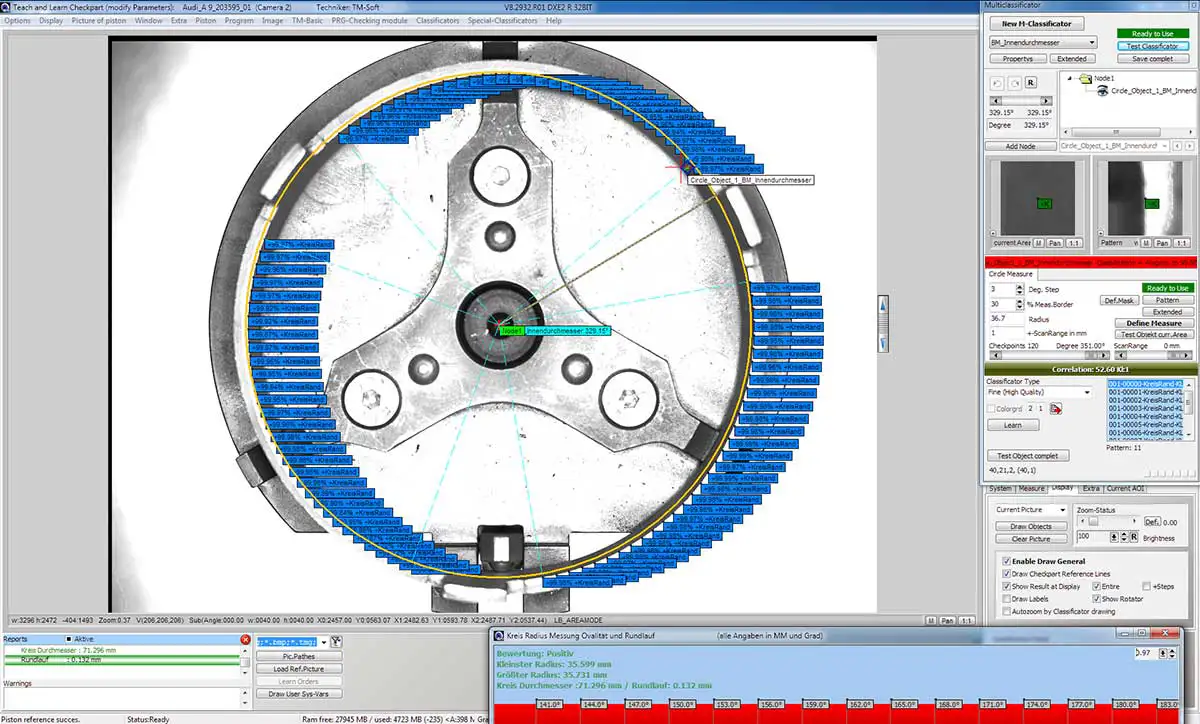

Picture 1 shows a synchronizer ring that is scanned at the inside diameter. By doing so, over 60 measuring points are allocated. The biggest and the smallest diameter is determined, as well as the ovality and the concentrity. This is shown in picture 2. The graphic is zoom- and scrollable.

The graphic shows in the green area the upper and the lower tolerance and the individual measured values.

  • Picture 1


  • Picture 2


  • Example Video


Are you interested in a demo-presentation?

Send us an e-mail. We will contact you near-term.
